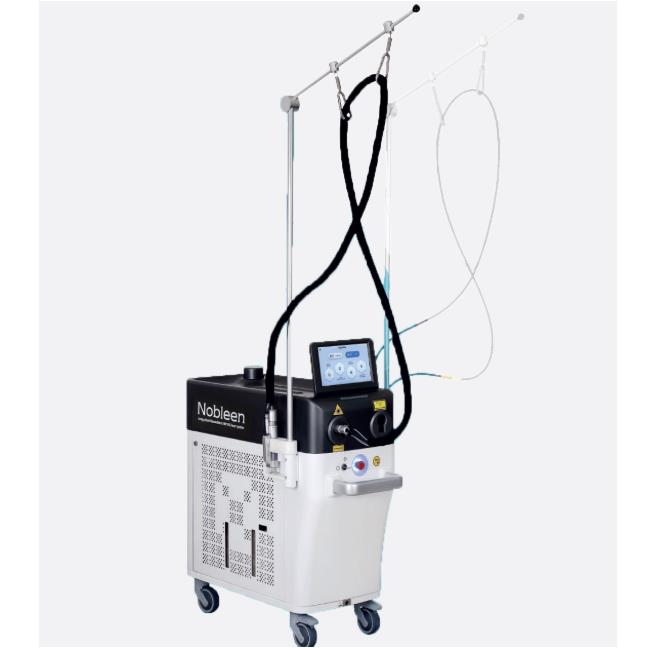

Nobleen
Simply the Best 755/1064nm Dual Laser in the Medical Aesthetic Market Laser System.
The new concept Laser for hair removal vascular lesion and rejuvenation treatment. Nobleen is one of the most advanced and innovative dual Nd:YAG & Alexandrite Laser available in the medical aesthetic market.
It is also one of the fastest and pain-free hair removal device. Especially fine hair can be treated very effectively.
The ‘Noble fractional technology’ is an innovative solution that provides the most advanced melasma and pigment lesions. It has been developed by FineMEC 20 years experience in Laser manufacturing and it delivers not only excellent result but also very safe treatment.
Indication of Long-pulsed Alexandrite LASER (755nm)
Hair Remov
Alexandrite is effective for long-term or permanent hair reduction in the Fitzpatrick skin types I-VI through selective targeting of melanin in hair follicles. By selectively concentrating heat only on the melanin pigment with properties of a high absorption of melanin, it gives little damage to skin tissue. Long pulsed alexandrite penetrates deeply into the skin and is less likely to regenerate pigments.
Benign Pigmented Lesion
Long-pulsed alexandrite laser has been used effectively and safely for treatment of various pigmented lesions, including seborrheic keratoses, congenital melanocytic nevus, freckles, and lentigines. It also works for treating a wide range of superficial pigmented lesions, enabling treatments from lentigos to leg and spider veins
Melasma
Melasma is an acquired pigmentary disorder charaterized by irregular brown macules and patches on the face, and it is a frequent cosmetic concern or everyone. FineMEC’s innovative Fractional Handpiece with special parameter of Nobleen would deliver bright skin texture with minimal side effect.
Indication of Long-pulsed Nd:YAG LASER (1064nm)
Vascular
In general, the blue leg veins have less in amount of oxidized hemoglobin, and the blood vessels are deep and thick, making it difficult to treat with short pulse lasers, but long pulsed Nd:YAG laser is able to treat effectively blue blood vessels. Thus, successful vascular treatment even with low energy can reduce adverse side effects and pain significantly.
Rejuvenation
The long-pulsed Nd:YAG laser is the best tool for enhancing the appearance and texture of the skin from deep within the layers of skin. It utilizes infrared light technology to penetrate the skin. In addition, it is much more penetrating than IPL technology which was previously thought to be the best method of laser skin rejuvenation. The long-pulsed Nd:YAG laser works by penetrating the pigments in the skin, as they absorb the energy of the laser. This mild inflammation stimulates the recovery process of the skin which generates new tissue and fresh new skin cells.
Tightening
Facial skin laxity generally connected with aging and loss of tissue volume is one of the major causes for women to decide for Laser treatment. The long-pulsed Nd:YAG is an excellent alternative to threads in face lift procedures performing a better treatment in skin tightening with reduction of deeper wrinkles. It finally stimulates the formation of new collagen in the deep dermis resulting in a tighter, more youthful appearance by beaming energy into the deeper layers of the skin and subcutaneous tissues.
Main Advantages
Patented 755nm Fractional Handpiece(optional)
Cutting-edge technology with the newest advanced generation of 755nm fractional handpiece provides an outstanding whitening and melasma treatment over 130 dots(400um size) protect the sensible skin and minimize the risk of PIH and hypo-pigmentation.
Power of Dual Wavelengths
755nm Alexandrite and 1064nm Nd:YAG laser combination offers a wide range of treatments for all kinds of skin types
Flexible Spot Size in One Handpiece
Adjustable dual cylinder zoom handpiece offers a variety of spot sizes (2~20mm) for individual needs.
High Power Energy & Virtually Pain-free Solution
Stable output energy of 80J (755nm)/ 100J (1064nm) and powerful max. 600 J/cm² fluence delivery ensure fast performance
Safe and Proven Preset Parameter
Clinically proven pre-set parameters provide safe and effective treatments with 48 memories storable & user-friendly UI
Powerful Cooling & Virtually Pain-free Solution
RCS Gas Cooling protects the epidermis and optional Zimmer air cooler adaptor provides maximum patient comfort
Ultra Fast
One of the fastest hair removal device in the market with a repetition rate up to 20Hz helps you to run a profitable clinic
Parametry techniczne:
| |
Alexandrite |
Nd:YAG |
|---|
| Wavelength |
755nm |
1064nm |
|---|
| Repetition |
1~20Hz |
|---|
| Output Energy |
Up to 80J |
Up to100J |
|---|
| Pulse Width |
0.08~100ms |
0.08~300ms |
|---|
| Spot Size |
2mm, 3mm, 5mm, 7mm, 10mm, 15mm, 20mm |
|---|
| Fluence - 2mm |
1 to 600 J/? |
1 to 400 J/? |
|---|
| Fluence - 3mm |
1 to 600 J/? |
1 to 400 J/? |
|---|
| Fluence - 5mm |
1 to 200 J/? |
1 to 200 J/? |
|---|
| Fluence - 7mm |
1 to 150 J/? |
1 to 150 J/? |
|---|
| Fluence - 10mm |
1 to 70 J/? |
1 to 100 J/? |
|---|
| Fluence - 15mm |
1 to 31 J/? |
1 to 45 J/? |
|---|
| Fluence - 20mm |
1 to 18 J/? |
1 to 25 J/? |
|---|
| Fractional Handpiece |
15mm Spot size
(130 dots, 400? dot size) |
|---|
| Beam Delivery |
Lens coupled optical fiber with handpiece |
|---|
| Aiming Beam |
22mW laser diode (350nm) |
|---|
| Control Panel |
Touch screen input interface |
|---|
| Pulse Control |
Foot switch |
|---|
| Skin cooling System |
Selective RCS gas cooling / Air cooling(external) |
|---|
| Duration of Cooling Spray |
5~20ms(Pre/Post) |
|---|
| Electrical Requirements |
AC 220V 30A (60Hz, single phase), Power consumption 6.6KVA |
|---|
| Dimensions |
880(H) × 385(W) × 950(L) |
|---|
| Weight |
85Kg |
|---|
Waga lasera (kg):
85;
Wysokość lasera (mm):
880;
Szerokość lasera (mm):
385;
Długość fali (nm):
755;
1064;
Brak akcesoriów
Brak materiałów dodatkowych
