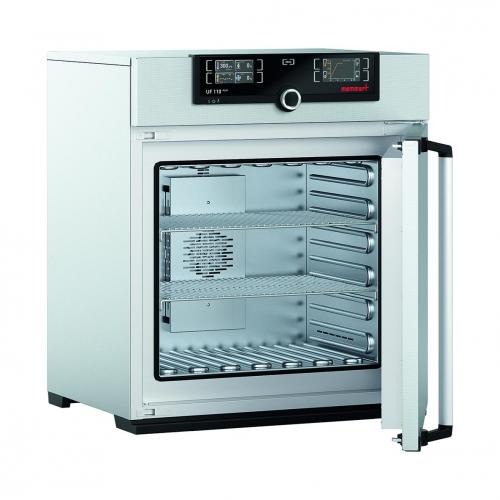

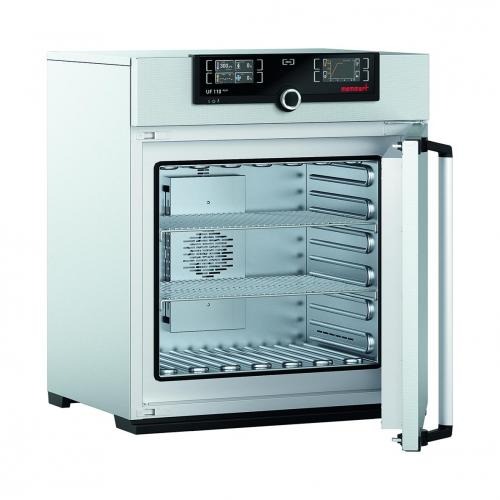

TwinDISPLAY: panel ControlCOCKPIT z dwoma kolorowymi wyświetlaczami TFT
Cechy:
Modele:
Typ | Poj. użytkowa | Obudowa (szer. x gł. x wys.) | Wym. wewn. (szer. x gł. x wys.) | Ilość poziomów / Ilość półek | Moc znamionowa | Ciężar |
l | mm | mm | W | kg | ||
UN30plus | 32 | 585 x 434** x 704 | 400 x 250* x 320 | 3 / 1 | 1600 | 45 |
UN55plus | 53 | 585 x 514** x 784 | 400 x 330* x 400 | 4 / 1 | 2000 | 57 |
UN75plus | 74 | 585 x 514** x 944 | 400 x 330* x 560 | 6 / 2 | 2500 | 66 |
UN110plus | 108 | 745 x 584** x 864 | 560 x 400* x 480 | 5 / 2 | 2800 | 74 |
UN160plus | 161 | 745 x 584** x 1104 | 560 x 400* x 720 | 8 / 2 | 3200 | 96 |
UN260plus | 256 | 824 x 684** x 1183 | 640 x 500* x 800 | 9 / 2 | 3400 | 110 |
UN450plus | 449 | 1224 x 784** x 1247 | 1040 x 600* x 720 | 8 / 2 | 5800 | 161 |
UN750plus | 749 | 1224 x 784** x 1726 | 1040 x 600* x 1200 | 14/2 | 7000 | 217 |
UF30plus | 32 | 585 x 434** x 704 | 400 x 250* x 320 | 3 / 1 | 1600 | 45 |
UF55plus | 53 | 585 x 514** x 784 | 400 x 330* x 400 | 4 / 1 | 2000 | 57 |
UF75plus | 74 | 585 x 514** x 944 | 400 x 330* x 560 | 6 / 2 | 2500 | 66 |
UF110plus | 108 | 745 x 584** x 864 | 560 x 400* x 480 | 5 / 2 | 2800 | 74 |
UF160plus | 161 | 745 x 584** x 1104 | 560 x 400* x 720 | 8 / 2 | 3200 | 96 |
UF260plus | 256 | 824 x 684** x 1183 | 640 x 500* x 800 | 9 / 2 | 3400 | 110 |
UF450plus | 449 | 1224 x 784** x 1247 | 1040 x 600* x 720 | 8 / 2 | 5800 | 161 |
UF1060plus | 1060 | 1224 x 1035** x 1726 | 1040 x 850* x 1200 | 14/1 | 7000 | 252 |
Zasilanie 230 V, 50/60 Hz, modele o poj. 450, 750 i 1060 L zasilane prądem 3-fazowym (400 V, 220 Vx3, bez neutralnego, 50/60 Hz)
Oznaczenie N - z naturalnym obiegiem powietrza, F - z wymuszonym obiegiem powietrza
* Pomniejszona o 39 mm przeznaczone na wentylator
**Głębokość bez uchwytu na drzwiach, należy dodać 56 mm
|
